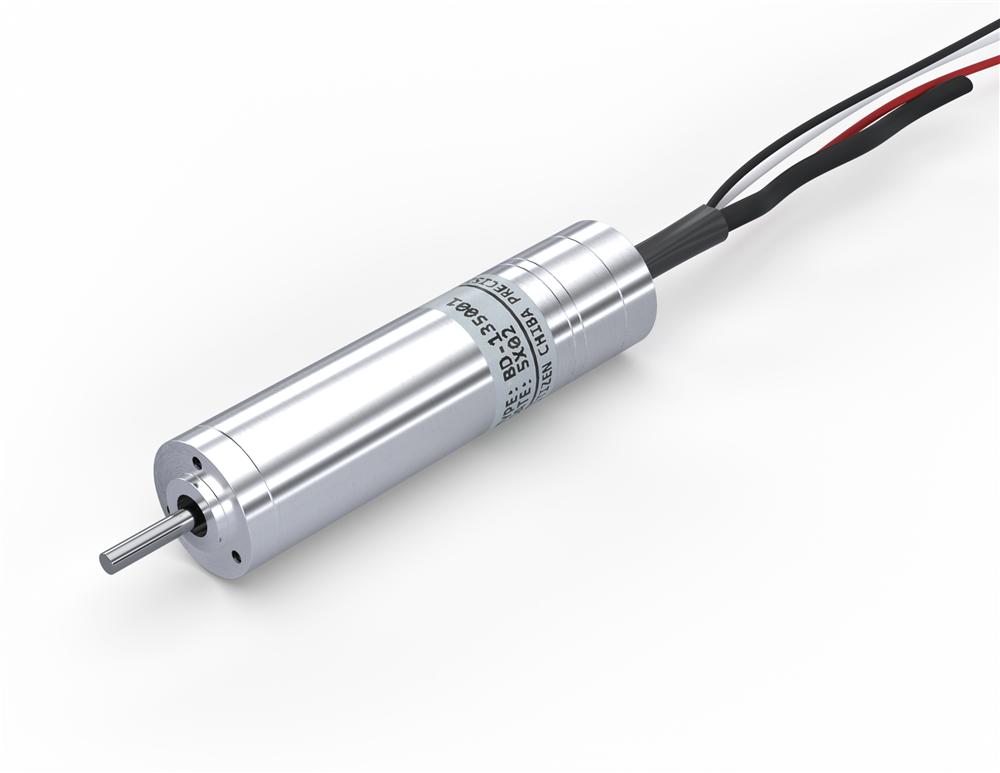

BD-1350

 * ← Please click here for "Detail of the Motor Characteristics".


Note*1: “Motor Characteristics” indicate the specifications measured with an aluminum heat sink (57×57×5t) attached to the motor flange.
For details on graph interpretation, please see “Detail of the Motor Characteristics” above.

Note*2: A gearhead and/or encoder can be mounted to the motor as options. Please refer to the information below.



Motor Specifications

Item	Unit	BD-135001
Number of poles	Pole	2
Power source voltage	V	24 ± 5%
Line resistance	Ω	11.9
Torque constant	mN-m/A	14.1
Back EMF constant	V/K rpm	1.47
No Load Speed	rpm	16500 (Note*1)
Max continuous current	A	0.33 (Note*1)
Maximum continuous torque	mNm	4.65 (Note*1)
Rated Speed	rpm	12670 (Note*1)
Rated output	W	6.2 (Note*1)
Weight	g	36
Drivers	BSD-36-＊＊＊＊ (Max Speed)	0512-△ 014 (5000 rpm)

Note*1: These values depend on the driver and encoder.

Note*2: The standard driver in the BSD-36 Series is set to a maximum speed of 5,000 rpm, but custom options allow operation above 5,000 rpm.
Please contact us via the Inquiry Form on this website for custom order details.

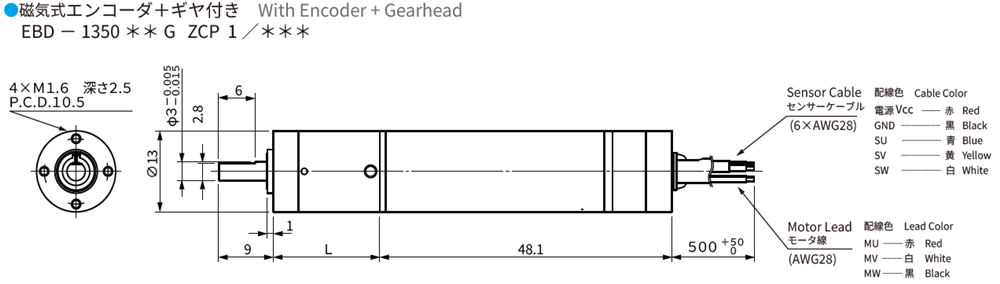

With Encoder + Gearhead

Encoder Type		Magnetic Incremental Type
Item	Unit	Encoder Specification
Power source voltage	V cc	DC + 5V ± 5%
Current Consumption	mA	30
Output voltage	V	High ≧ 3.2V / Low ≦ 1.0V
Maximum output current	mA	±20
Number of channels	ch	3 (A, B, Z)
Maximum response frequency	kHz	1700
Output circuit	–	Line driver / TTL
Output pulse number	Pulse/Rev	512

Motor Specification with Gearhead

BD-1350□□G ZCP 1/xxx (φ13)

Reduction ratio		4	16	24	64	96	*144	*256	*384	*576	*864
Rated torque	N·m	0.015	0.048	0.071	0.152	0.228	0.260	0.400	0.400	0.400	0.400
Rated speed	rpm	1540	381	254	94	63	55	29	29	24	17
Rated output	W	2.4	1.9	1.9	1.5	1.5	1.5	1.2	1.2	1.0	0.7
Length L	mm	15.1	17.5	17.5	21.4	21.4	21.4	25.3	25.3	25.3	25.3

• Note*1: When using reduction ratios marked with an asterisk (*), please ensure not to exceed the allowable output torque of the gearhead.
• Note*2: The above values are based on continuous operation with uniform load.
